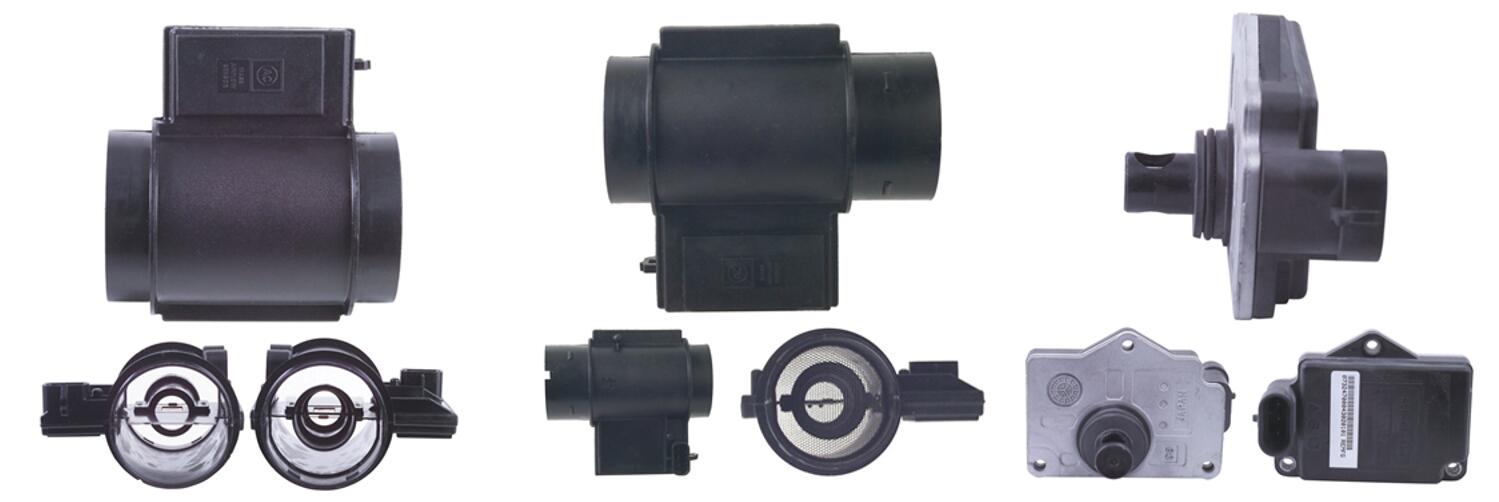

The mass air flow (MAF) sensor is the sensor that determines the air flow into the engine. To obtain the optimum mixture concentration under all operating conditions, the sensor determines the amount of air drawn into the engine at each moment. The amount is the primary basis for the ECU's calculation (control) of the fuel injection.

1. Introduction

2.Case Analysis

1. Introduction

The MAF sensor is one of the crucial sensors in the automobile engine. The amount of air inhaled by the engine when working determines the amount of fuel injected into the engine. The amount of air inhaled is an essential basis for the amount of fuel injected.

If the MAF sensor is defective, the computer can't get an accurate signal and can't correctly control the fuel injection. The air-fuel mixture in the engine will be too thick or too lean, which easily affects the regular engine operation.

The operating principle of the MAF sensor is that: the outside air flows through the sensor after entering the throttle, which takes away a large part of the heat. The larger the exterior air flows, the more heat is taken away. In order to keep the MAF sensor at a specific temperature, it needs extra current to heat the sensor. The sensor then controls the amount of air flow by the current.

For more helpful diagnostic advice, information on car sensors, take a look at our other recent blog posts.

2. Case Analysis

Here is a case of the Buick mass air flow sensor failure.

There is a Buick that drives nearly 100,000km. The car is short of power and has poor acceleration while driving. Check the engine, and it judders seriously while idling. The intake pipe backfires during the rapid acceleration.

Put the fault testing device into use. It shows no DTC.

Clean the air filter. Replace the spark plugs and petrol filter. But the fault persists. Use the fuel injection system cleaner and deliver it to the intake manifold with special equipment. When the engine starts, clean the EFI automatically, but it doesn't work.

Remove the injectors and clean with special equipment, but the effect isn't apparent. Later remove the air filter. Use something to block part of the throttle valve's intake screen to reduce the intake area of the main channel. This step makes the air-fuel mixture rich.

Then the engine idle speed becomes stable. Acceleration doesn't backfire anymore, which indicates that the direct cause of the failure is the excessively lean air-fuel mixture.

To test the fuel pressure, connect a fuel pressure gauge to the fuel line between the fuel pressure regulator and the injector nozzle with a tee connector. The engine starts. Test the pressure of the fuel supply system at idle speed, medium load and high load conditions.

The measured values are: 286 kPa when the engine when idling. 342 kPa when unplugging the vacuum hose on the fuel pressure regulator at idle speed.

Change the throttling threshold. The value of the fuel pressure gauge changes with the throttling threshold. The pressure is in proportion to the throttling threshold.

According to the service manual, the pressure of the fuel supply system is completely normal.

Later, considering that the MAF sensor is an essential factor affecting the air-fuel ratio, unplug the engine and test. After unplugging, the engine runs at a stable idle speed. The acceleration improves.

Use a TECH-2 diagnostic tool for further diagnosis. First, connect the TECH-2 scan tool to read the data stream from the MAF sensor, which was 2 g/s at idle speed.

The acceleration test shows that the data increases with the throttling threshold, but the backfire sound is more likely to occur during rapid acceleration. The equipment shows that the MAP sensor output voltage is 0.6V at a vacuum level of 600 kPa. With the throttling threshold increases, the output voltage increases to around 2.6V.

The inspection result shows that there is no air leaking in the intake pipe. From the data stream, the MAF sensor data stream at idle speed is 2g/s. It's kind of low, so remove the MAF sensor from the throttle valve. It turns out that the hot wire in the side channel isn't broken but has a severe accumulation of dirt.

Replace the Buick MAF sensor, and the problem is solved.
