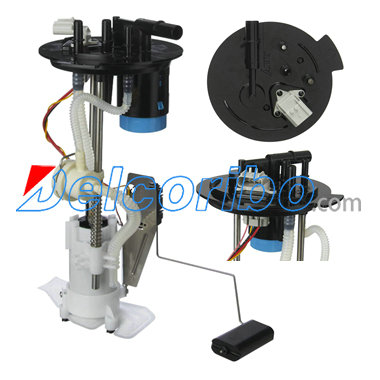

FORD 4L5Z9H307AE, 5L5Z9H307AA, 6L5Z9H307A, 6L5Z9H307AA, 6L5Z9H307D Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.3
Max Pressure Range (Psi): 123.5
Max Free Flow (Gph): 55.6
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46.4
Min Pressure Range (Psi): 79.7
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 4L5Z9H307AE, 4L5Z 9H307 AE, 5L5Z9H307AA, 5L5Z 9H307 AA, 6L5Z9H307A, 6L5Z 9H307 A, 6L5Z9H307AA, 6L5Z 9H307 AA, 6L5Z9H307D, 6L5Z 9H307 D, P2600S, MAZDA 1F7013350A, 1F70 13350 A, 1F8013350, 1F8013350A, 1F80 13350 A, 1F8013350B, 1F80 13350 B,

SPECTRA PREMIUM SP2007M
DELPHI FG0881
AIRTEX E2357M

FORD RANGER 2004-2006
MAZDA B2300 2004-2006
MAZDA B3000 2004-2006
