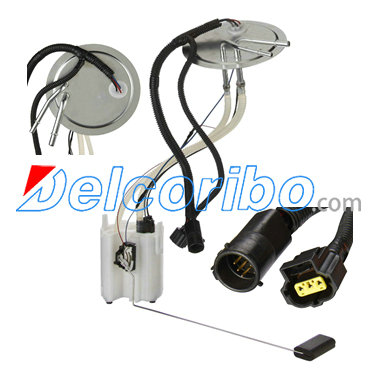

FORD 3C3Z9H307FA, 3C3Z9H307FB, 3C3Z9H307FC, F81Z9H307FA Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 21.0
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 46.4
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 34
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 3C3Z9H307FA, 3C3Z 9H307 FA, 3C3Z9H307FB, 3C3Z 9H307 FB, 3C3Z9H307FC, 3C3Z 9H307 FC, F81Z9H307FA, F81Z 9H307 FA, F81Z9H307FG, F81Z 9H307 FG, F81Z9H307FH, F81Z 9H307 FH, P2505M, SP2037M,

SPECTRA PREMIUM SP2032M
BOSCH 67226
DELPHI FG0363
AIRTEX E2235M

FORD F-250 SUPER DUTY 1999-2004
FORD F-350 SUPER DUTY 1999-2004
FORD F-450 SUPER DUTY 1999-2003
FORD F-550 SUPER DUTY 1999-2003
