FORD 1F1Z9H307EB, 1F1Z-9H307-EB, 1F1Z9H307EC, 1F1Z-9H307-EC Electric Fuel Pump Assembly

FORD 1F1Z9H307EB, 1F1Z-9H307-EB, 1F1Z9H307EC, 1F1Z-9H307-EC Electric Fuel Pump Assembly

FORD 1F1Z9H307EB, 1F1Z-9H307-EB, 1F1Z9H307EC, 1F1Z-9H307-EC Electric Fuel Pump Assembly

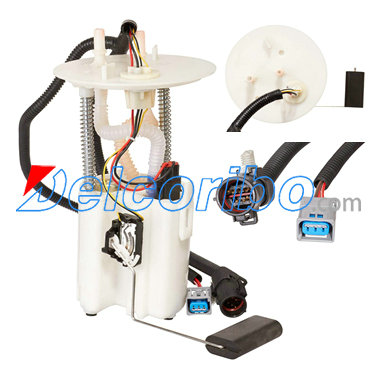

FPM1046 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.9
Max Pressure Range (Psi): 60
Max Free Flow (Gph): 65.0
Resistance Empty (Ohms): 7
Resistance Full (Ohms): 138
Rheostat Range (Ohms): 7-138
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 55.7
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD 1F1Z9H307EB, 1F1Z 9H307 EB, 1F1Z9H307EC, 1F1Z 9H307 EC, P2649M,
SPECTRA PREMIUM SP2048M
DELPHI FG1150
AIRTEX E2329M
FORD TAURUS 2001
MERCURY SABLE 2001
