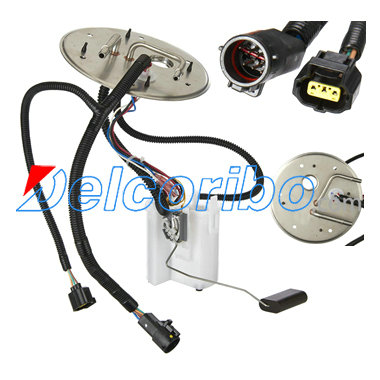

FORD 3C3Z9H307JA, 3C3Z9H307JB, F81Z9H307JA, F81Z9H307JB Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 20.1
Max Pressure Range (Psi): 123.3
Max Free Flow (Gph): 52.6
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 43.3
Min Pressure Range (Psi): 87.0
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 3C3Z9H307JA, 3C3Z 9H307 JA, 3C3Z9H307JB, 3C3Z 9H307 JB, F81Z9H307JA, F81Z 9H307 JA, F81Z9H307JB, F81Z 9H307 JB, P2549S, P2627M,

SPECTRA PREMIUM SP2051M
CARTER P76686M
DELPHI FG0951
AIRTEX E2231M

FORD F-350 SUPER DUTY 1999-2004
FORD F-450 SUPER DUTY 1999-2004
FORD F-550 SUPER DUTY 2000-2004
