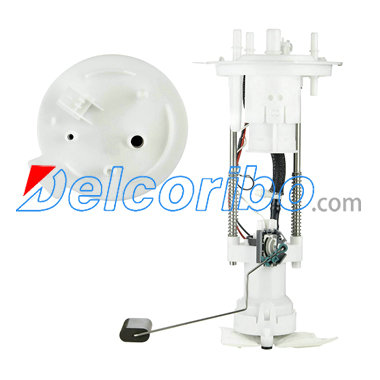

FORD 6L3Z9H307E, 7L3Z9H307E, 8L3Z9H307E, 8L3Z9A213B Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.7
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 68.1
Resistance Empty (Ohms): 8
Resistance Full (Ohms): 138
Rheostat Range (Ohms): 8-138
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 61.9
Min Pressure Range (Psi): 79.75
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 6L3Z9H307E, 6L3Z 9H307 E, 7L3Z9H307E, 7L3Z 9H307 E, 8L3Z9H307E, 8L3Z 9H307 E, 8L3Z9A213B,

SPECTRA PREMIUM SP2071M
BOSCH 69190
DELPHI FG1584
AIRTEX E2531M

FORD F-150 2006-2008
