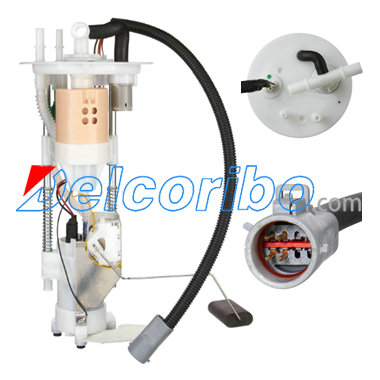

FORD 2L2Z9H307FA, 3L2Z9H307FA, 3L2Z9H307FB, 3L2Z9H307FC Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 13.7
Max Pressure Range (Psi): 92.8
Max Free Flow (Gph): 52.3
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 43
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

FORD 2L2Z9H307FA, 2L2Z 9H307 FA, 3L2Z9H307FA, 3L2Z 9H307 FA, 3L2Z9H307FB, 3L2Z 9H307 FB, 3L2Z9H307FC, 3L2Z 9H307 FC,

SPECTRA PREMIUM SP2077M
DELPHI FG1335
AIRTEX E2353M

FORD EXPLORER 2002-2003
