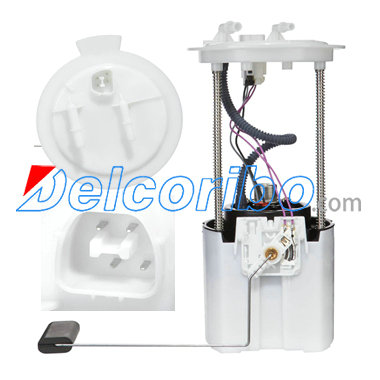

FORD AL8Z9H307B, AL8Z9H307C, 9L8Z9H307C, AM6Z9H307A Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.6
Max Pressure Range (Psi): 62.35
Max Free Flow (Gph): 66.53
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57.25
Min Pressure Range (Psi): 56.55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD AL8Z9H307B, AL8Z 9H307 B, AL8Z9H307C, AL8Z 9H307 C, 9L8Z9H307C, 9L8Z 9H307 C, AM6Z9H307A, AM6Z 9H307 A, FG1360, MAZDA ZZEB1335X,

SPECTRA PREMIUM SP2392M
DELPHI FG1318
AIRTEX E2554M
BOSCH 66027, F00E194168, F00E194603

FORD ESCAPE 2009-2012
MAZDA TRIBUTE 2010-2011
MERCURY MARINER 2009-2011
