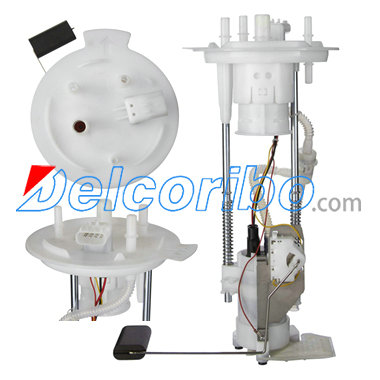

FORD 6L3Z9H307H, 7L3Z9H307H, 7L3Z-9H307-H, 8L3Z9H307H, 8L3Z9H307-H Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 14.4
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 68
Resistance Empty (Ohms): 7
Resistance Full (Ohms): 138
Rheostat Range (Ohms): 7-138
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 3/8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 58.7
Min Pressure Range (Psi): 79.8
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 6L3Z9H307H, 6L3Z 9H307 H, 7L3Z9H307H, 7L3Z 9H307 H, 8L3Z9H307H, 8L3Z 9H307 H, SP2074M,

SPECTRA PREMIUM SP2106M
BOSCH 69193
DELPHI FG0948
AIRTEX E2501M
CARTER P76340M

FORD F-150 2006-2008
