FORD AG1Z9H307B, AG1Z9H307C, AG1Z-9H307-C Electric Fuel Pump Assembly

FORD AG1Z9H307B, AG1Z9H307C, AG1Z-9H307-C Electric Fuel Pump Assembly

FORD AG1Z9H307B, AG1Z9H307C, AG1Z-9H307-C Electric Fuel Pump Assembly

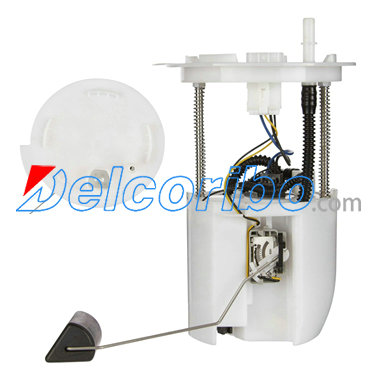

FPM1090 FORD Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.3
Max Pressure Range (Psi): 66.7
Max Free Flow (Gph): 62.2
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52.9
Min Pressure Range (Psi): 60.9
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD AG1Z9H307B, AG1Z 9H307 B, AG1Z9H307C, AG1Z 9H307 C,
SPECTRA PREMIUM SP2118M
DELPHI FG1144
AIRTEX E2559M
CARTER P76590M
FORD TAURUS 2010-2012
LINCOLN MKS 2010-2012
