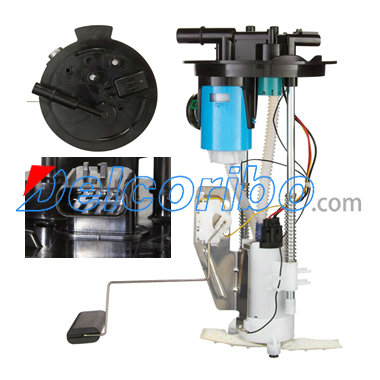

FORD 7L5Z9H307A, 8L5Z9H307A, 8L5Z9H307D, AL5Z9H307A, 1FBA13350 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 13.23
Max Pressure Range (Psi): 123.25
Max Free Flow (Gph): 57.87
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.58
Min Pressure Range (Psi): 79.75
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 7L5Z9H307A, 7L5Z 9H307 A, 8L5Z9H307A, 8L5Z 9H307 A, 8L5Z9H307D, 8L5Z 9H307 D, AL5Z9H307A, AL5Z 9H307 A, 1FBA13350,

SPECTRA PREMIUM SP2386M
DELPHI FG0883
AIRTEX E8808M

FORD RANGER 2007-2011
