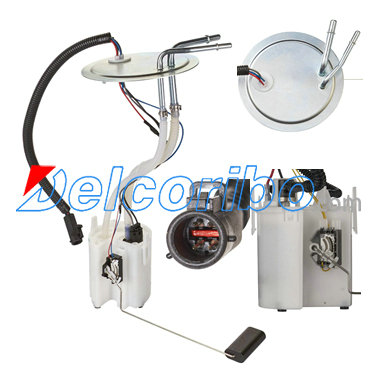

FORD C3Z9H307EA, 3C3Z9H307EB, 3C3Z9H307EC, F81Z9H307EA, F81Z9H307EE, F81Z9H307EF Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 21.5
Max Pressure Range (Psi): 123.3
Max Free Flow (Gph): 37.1
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 30.9
Min Pressure Range (Psi): 79.8
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD C3Z9H307EA, C3Z 9H307 EA, 3C3Z9H307EB, 3C3Z 9H307 EB, 3C3Z9H307EC, 3C3Z 9H307 EC, F81Z9H307EA, F81Z 9H307 EA, F81Z9H307EE, F81Z 9H307 EE, F81Z9H307EF, F81Z 9H307 EF, P2507M, P2561S,

SPECTRA PREMIUM SP2238M
BOSCH 67175. F00E190028
DELPHI FG0953
AIRTEX E2238M

FORD F-250 SUPER DUTY 1999-2003
FORD F-350 SUPER DUTY 1999-2004
