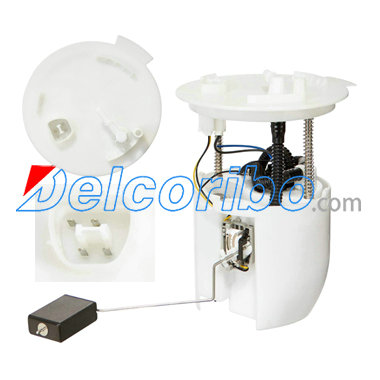

FORD 6E5Z9H307A, 6E5Z9H307E, 6E5Z9H307F, 7E5Z9H307S, 7E5Z-9H307-S, 8E5Z9H307S, 8E5Z-9H307-S Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8.94
Max Pressure Range (Psi): 61
Max Free Flow (Gph): 62.2
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52.91
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 6E5Z9H307A, 6E5Z 9H307 A, 6E5Z9H307E, 6E5Z 9H307 E, 6E5Z9H307F, 6E5Z 9H307 F, 7E5Z9H307S, 7E5Z 9H307 S, 8E5Z9H307S, 8E5Z 9H307 S,

SPECTRA PREMIUM SP2367M
DELPHI FG1138
AIRTEX E2459M
CARTER P76495M

FORD FUSION 2006-2009
MERCURY MILAN 2006-2009
