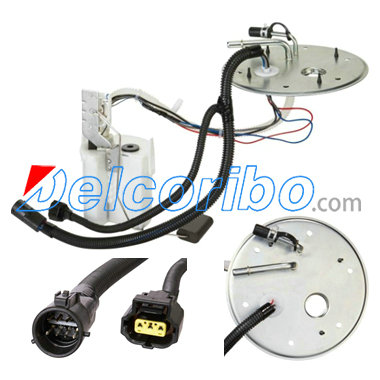

FORD 7C3Z9A299D, 7C3Z9A299H, 7C3Z9H307D, 8C3Z9H307C, 8C3Z-9H307-C Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8.1
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 65
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 1/4
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 56
Min Pressure Range (Psi): 87
Strainer Included: Yes
Pin Count: 7
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 7C3Z9A299D, 7C3Z9A299H, 7C3Z9H307D, 7C3Z 9H307 D, 8C3Z9H307C, 8C3Z 9H307 C,

SPECTRA PREMIUM SP2385M
BOSCH 69376, F 00E 194 171F 00E 194 171, F00E194171
DELPHI FG1211
AIRTEX E2512M

FORD F-350 SUPER DUTY 2008-2010
FORD F-450 SUPER DUTY 2008-2010
FORD F-550 SUPER DUTY 2008-2010
