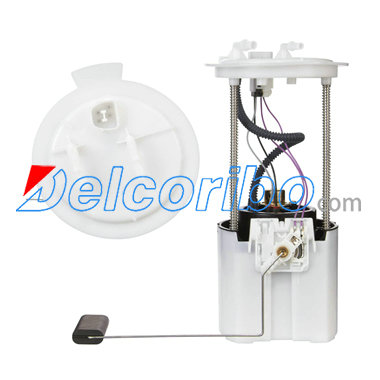

FORD AL8Z9H307A, AL8Z-9H307-A, ZZE21335X, ZZE2-13-35X, ZZCB1335X, ZZCB-13-35X Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.6
Max Pressure Range (Psi): 62.35
Max Free Flow (Gph): 66.53
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57.25
Min Pressure Range (Psi): 56.55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD AL8Z9H307A, AL8Z 9H307 A, AL8Z 9H307-A, ZZE21335X, FG1320, ZZCB1335X,

SPECTRA PREMIUM SP2391M
BOSCH 69373, 66123, F 00E 194 169, F00E194169, F 00E 194 701, F00E194701
DELPHI FG1317
AIRTEX E2568M
CARTER P76591M
MOTORCRAFT PFS532

FORD ESCAPE 2009-2012
MAZDA TRIBUTE 2010-2011
MERCURY MARINER 2009-2011
