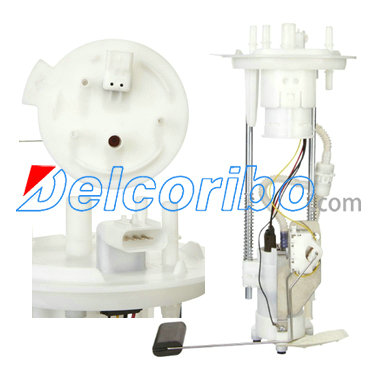

FORD 4L3Z9H307DF, 5L3Z9H307DB, 6L3Z9H307D, 7L3Z9H307D, 8L3Z9H307D, 4L3U9H307DJ Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.4
Max Pressure Range (Psi): 116.0
Max Free Flow (Gph): 72.7
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 63.4
Min Pressure Range (Psi): 79.8
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 4L3Z9H307DF, 4L3Z 9H307 DF, 5L3Z9H307DB, 5L3Z 9H307 DB, 6L3Z9H307D, 6L3Z 9H307 D, 7L3Z9H307D, 7L3Z 9H307 D, 8L3Z9H307D, 8L3Z 9H307 D, 4L3U9H307DJ, 4L3U 9H307 DJ, 6L349H307JD, 6L34 9H307 JD, 8L349H307JA, 8L34 9H307 JA, 4L3Z9H307AE, 4L3Z 9H307 AE,

SPECTRA PREMIUM SP2436M
BOSCH 69189
DELPHI FG0847
AIRTEX E2436M
TYC 150113
CARTER P76345M
MOTORCRAFT PFS210

FORD F-150 2004-2008
FORD LOBO 2007
LINCOLN MARK LT 2007-2008
