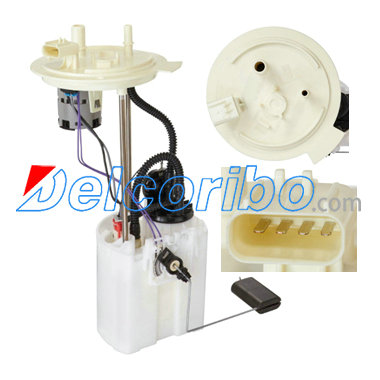

FORD EL3Z9H307A, EL3Z-9H307-A Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 14
Max Pressure Range (Psi): 75
Max Free Flow (Gph): 45
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 35
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 3
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD EL3Z9H307A, EL3Z 9H307 A,

SPECTRA PREMIUM SP2553M
CARTER P76759M
DELPHI FG1482
MOTORCRAFT PFS1034

FORD F-150 2014
