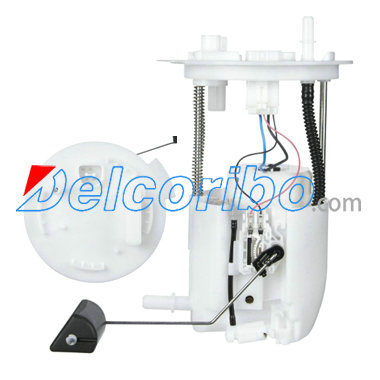

FORD BB5Z9H307A, BB5Z 9H307-A , BB5Z9H307C, BB5Z 9H307-C, DB5Z9A407A Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.24
Max Pressure Range (Psi): 63.8
Max Free Flow (Gph): 58.7
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 49.5
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD BB5Z9H307A, BB5Z 9H307 A, BB5Z9H307C, BB5Z 9H307 C, DB5Z9A407A,

SPECTRA PREMIUM SP2469M
DELPHI FG1329
AIRTEX E2577M
MOTORCRAFT PFS971
CARTER P76599M

FORD EXPLORER 2011-2012
