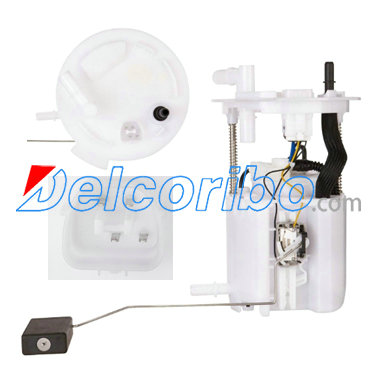

FORD DA8Z9H307G, DA8Z-9H307-G, DA8Z9H307J, DA8Z-9H307-J, DB5Z9A407A, DB5Z9H307C, DB5Z-9H307-C Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 64
Max Free Flow (Gph): 67
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 58
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD DA8Z9H307G, DA8Z 9H307 G, DA8Z9H307J, DA8Z 9H307 J, DB5Z9A407A, DB5Z9H307C, DB5Z 9H307 C,

SPECTRA PREMIUM SP2509M
DELPHI FG1756
DELPHI FG1935
AIRTEX E2605M
MOTORCRAFT PFS1027

FORD EXPLORER 2014-2015
FORD FLEX 2013-2015
FORD POLICE INTERCEPTOR UTILITY 2014-2015
LINCOLN MKT 2013-2014
