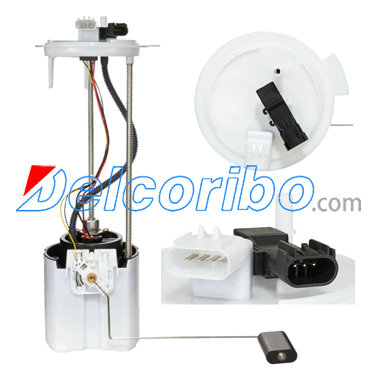

FORD BC3Z9H307B, BC3Z-9H307-B, BC3Z9A299F, BC3Z-9A299-F Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 17.3
Max Pressure Range (Psi): 62.35
Max Free Flow (Gph): 78.91
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 69.62
Min Pressure Range (Psi): 56.55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

FORD BC3Z9H307B, BC3Z 9H307 B, BC3Z9A299F,

SPECTRA PREMIUM SP2473M
DELPHI FG2059
AIRTEX E2583M
MOTORCRAFT PFS556

FORD F-350 SUPER DUTY 2011-2014
FORD F-450 SUPER DUTY 2011-2016
FORD F-550 SUPER DUTY 2011-2016
