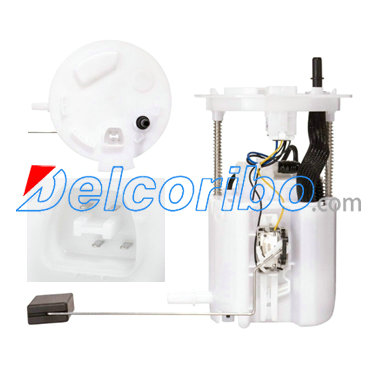

FORD DG9Z9A407A, DG9Z9H307B, DG9Z9H307R, DG9Z9A299C, DG9Z9H307F, DG9Z9H307T Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 90
Max Free Flow (Gph): 65
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 56
Min Pressure Range (Psi): 84
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD DG9Z9A407A, DG9Z9H307B, DG9Z 9H307 B, DG9Z9H307R, DG9Z 9H307 R, DG9Z9A299C, DG9Z9H307F, DG9Z 9H307 F, DG9Z9H307T, DG9Z 9H307 T,

SPECTRA PREMIUM SP2499M
DELPHI FG1979, FG2077
MOTORCRAFT PFS999, PFS1001, PFS956

FORD FUSION 2013-2016
LINCOLN MKZ 2013-2016
