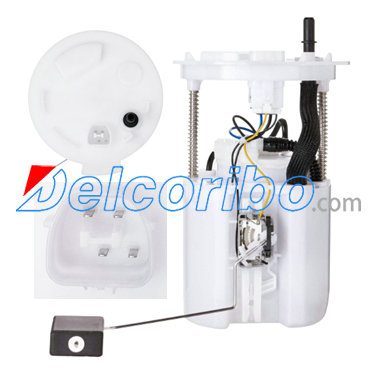

FORD DG9Z9A407C, DG9Z9H307Z, DG9Z9H307C, DG9Z9H307P, DG9Z9A299A, DG9Z9A299G Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 64
Max Free Flow (Gph): 65
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 55
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD DG9Z9A407C, DG9Z9H307Z, DG9Z 9H307 Z, DG9Z9H307C, DG9Z 9H307 C, DG9Z9H307P, DG9Z 9H307 P, DG9Z9A299A, DG9Z9A299G,

SPECTRA PREMIUM SP2502M
DELPHI FG1668
AIRTEX E2621M
MOTORCRAFT PFS1037

FORD FUSION 2013-2019
