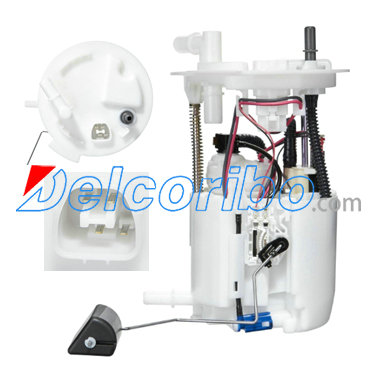

FORD DG1Z9H307L, DG1Z9H307M, DG1Z-9H307-M, DG1Z9H307S, DG1Z-9H307-S Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 10.1
Max Pressure Range (Psi): 70
Max Free Flow (Gph): 75
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 65
Min Pressure Range (Psi): 50
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

FORD DG1Z9H307L, DG1Z 9H307 L, DG1Z9H307M, DG1Z 9H307 M, DG1Z9H307S, DG1Z 9H307 S,

SPECTRA PREMIUM SP2508M
MOTORCRAFT PFS1029, PFS1043

LINCOLN MKS 2013-2014
