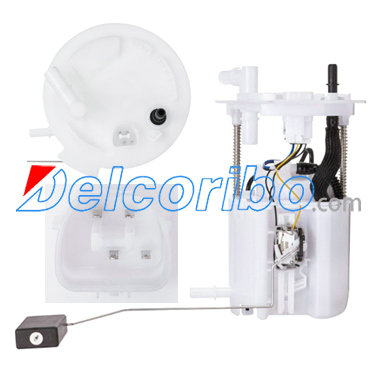

FORD DA839H307AF, DA83-9H307-AF , DA8Z9A407A, DA8Z9H307F, DA8Z9H307H, DA8Z-9H307 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 9.8
Max Pressure Range (Psi): 90
Max Free Flow (Gph): 72
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 63
Min Pressure Range (Psi): 84
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD DA839H307AF, DA83 9H307 AF, DA8Z9A407A, DA8Z9H307F, DA8Z 9H307 F, DA8Z9H307H, DA8Z 9H307 H,

SPECTRA PREMIUM SP2512M
MOTORCRAFT PFS1026

FORD EXPLORER 2013-2015
LINCOLN MKT 2013-2016
