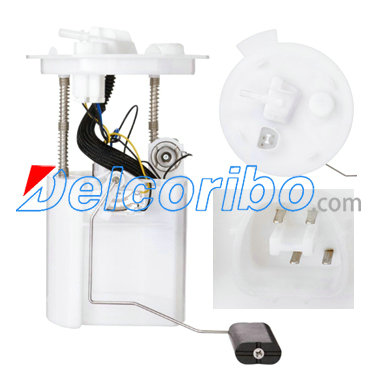

FORD BV6Z9A299A, BV6Z-9A299-A, BV6Z9H307AH, BV6Z 9H307 AH, BV6Z9H307H, BV6Z9H307P, BV6Z9H307U, BV6Z9H307AV Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.6
Max Pressure Range (Psi): 90
Max Free Flow (Gph): 61
Resistance Empty (Ohms): 464
Resistance Full (Ohms): 51
Rheostat Range (Ohms): 464-51
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52
Min Pressure Range (Psi): 84
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD BV6Z9A299A, BV6Z9H307AH, BV6Z 9H307 AH, BV6Z9H307H, BV6Z 9H307 H, BV6Z9H307P, BV6Z 9H307 P, BV6Z9H307U, BV6Z 9H307 U, BV6Z9H307AV, BV6Z 9H307 AV,

SPECTRA PREMIUM SP2516M
BOSCH 66028
DELPHI FG1532
AIRTEX E2592M
MOTORCRAFT PFS1092, PFS1179
BOSCH F 00E 194 604 F00E194604,F 00E 194 654 F00E194654,F 00H K00 792 F00HK00792

FORD FOCUS 2012-2017
