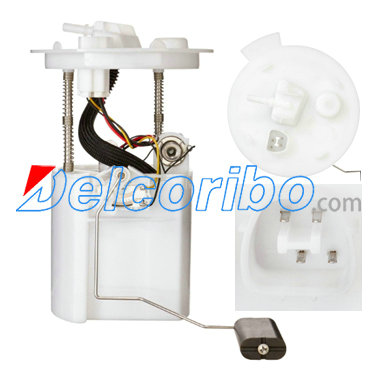

FORD BV6Z9A299B, BV6Z9H307AX, BV6Z9H307K, BV6Z9H307N, BV6Z9H307S, BV6Z9H307T Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.6
Max Pressure Range (Psi): 90
Max Free Flow (Gph): 69
Resistance Empty (Ohms): 464
Resistance Full (Ohms): 51
Rheostat Range (Ohms): 464-51
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 60
Min Pressure Range (Psi): 84
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD BV6Z9A299B, BV6Z9H307AX, BV6Z 9H307 AX, BV6Z9H307K, BV6Z 9H307 K, BV6Z9H307N, BV6Z 9H307 N, BV6Z9H307S, BV6Z 9H307 S, BV6Z9H307T, BV6Z 9H307 T,

SPECTRA PREMIUM SP2521M
BOSCH 66095
DELPHI FG1531
AIRTEX E2596M
CARTER P76863M
MOTORCRAFT PFS1189

FORD FOCUS 2012-2017
