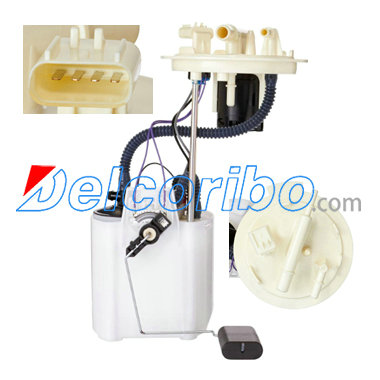

FORD FL3Z9H307D, FL3Z9H307G, FL3Z9H307M, FL3Z-9H307-M, HL3Z9A299A Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 12.5
Max Pressure Range (Psi): 125
Max Free Flow (Gph): 65
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 55
Min Pressure Range (Psi): 105
Strainer Included: Yes
Pin Count: 3
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD FL3Z9H307D, FL3Z 9H307 D, FL3Z9H307G, FL3Z 9H307 G, FL3Z9H307M, FL3Z 9H307 M, HL3Z9A299A,

SPECTRA PREMIUM SP2554M
DELPHI FG1972
AIRTEX E2651M
MOTORCRAFT PFS1223

FORD F-150 2015-2018
