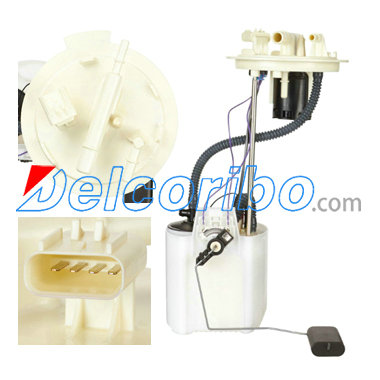

FORD FL3Z9H307B, FL3Z 9H307 B, FL3Z9H307L, FL3Z-9H307-L Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 12.8
Max Pressure Range (Psi): 138.8
Max Free Flow (Gph): 73.6
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: No
Min Free Flow Rate (Gph): 64.4
Min Pressure Range (Psi): 118.8
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD FL3Z9H307B, FL3Z 9H307 B, FL3Z9H307L, FL3Z 9H307 L,

SPECTRA PREMIUM SP2570M
DELPHI FG2078
AIRTEX E2646M
MOTORCRAFT PFS1053

FORD F-150 2015-2018
