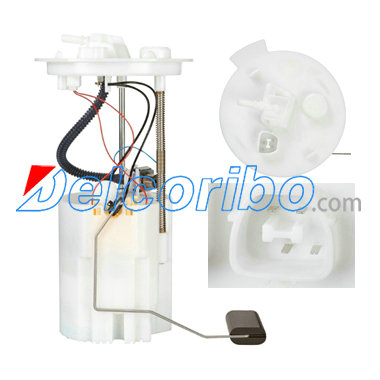

FORD DV6Z9H307B, DV6Z-9H307-B, DV6Z9H307G, DV6Z-9H307-G, DV6Z9H307S, DV6Z-9H307-S Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 11.1
Max Pressure Range (Psi): 108.7
Max Free Flow (Gph): 54.1
Resistance Empty (Ohms): 465
Resistance Full (Ohms): 50
Rheostat Range (Ohms): 465-50
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: No
Min Free Flow Rate (Gph): 44.9
Min Pressure Range (Psi): 98.7
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD DV6Z9H307B, DV6Z 9H307 B, DV6Z9H307G, DV6Z 9H307 G, DV6Z9H307S, DV6Z 9H307 S,

SPECTRA PREMIUM SP2578M
DELPHI FG2034
MOTORCRAFT PFS995, PFS1088, PFS1267

FORD TRANSIT CONNECT 2014-2016
