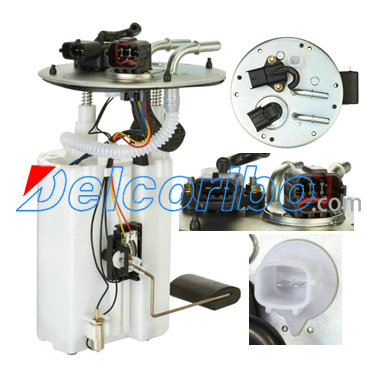

KIA 0K52Y1335X, 0K52Y1335XA, 0K52Y1335XDS, 0K52Y1335Z, 0K52Y1335XADS, 0K52Y1335ZDS Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.7
Max Pressure Range (Psi): 123.3
Max Free Flow (Gph): 59
Resistance Empty (Ohms): 110
Resistance Full (Ohms): 3
Rheostat Range (Ohms): 110-3
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 49
Min Pressure Range (Psi): 94.3
Strainer Included: Yes
Pin Count: 6
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

KIA 0K52Y1335X, 0K52Y1335XA, 0K52Y1335XDS, 0K52Y1335Z, 0K52Y1335XADS, 0K52Y1335ZDS,

SPECTRA PREMIUM SP3007M
DELPHI FG1670
AIRTEX E8661M

KIA SEDONA 2002-2003
