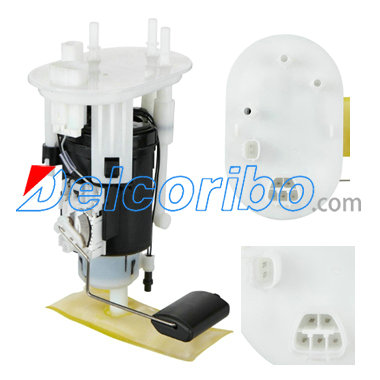

HYUNDAI 3111026350, 31110-26350, 3111026355, 3111026355DS, 31110-26355--DS Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8.2
Max Pressure Range (Psi): 109
Max Free Flow (Gph): 44
Resistance Empty (Ohms): 122
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 122-4
Inlet Quantity: 2
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 35
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

HYUNDAI 3111026350, 3111026355, 3111026355DS,

SPECTRA PREMIUM SP3012M
DELPHI FG1257
AIRTEX E8662M
CARTER P76404M

HYUNDAI SANTA FE 2003-2006
