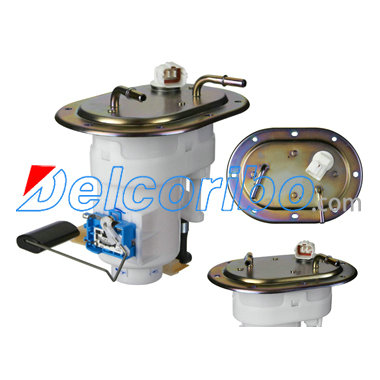

HYUNDAI 1102E350, 1102E450, 311102E350, 311102E351, 311102E450 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8
Max Pressure Range (Psi): 85
Max Free Flow (Gph): 59
Resistance Empty (Ohms): 104
Resistance Full (Ohms): 4.5
Rheostat Range (Ohms): 104-4.5
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 75
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

HYUNDAI 1102E350, 1102E450, 311102E350, 311102E351, 311102E450,

SPECTRA PREMIUM SP3014M
DELPHI FG1262

HYUNDAI TUCSON 2005-2009
KIA SPORTAGE 2005-2010
