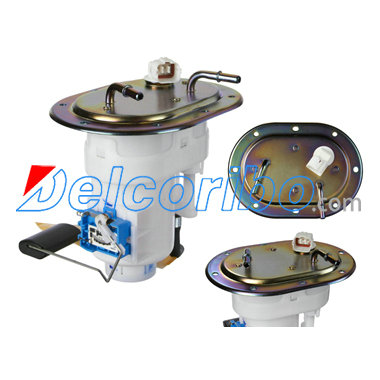

HYUNDAI 1102E400, 231102E400, 231102E401, 311102E300, 311102E301 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8
Max Pressure Range (Psi): 55
Max Free Flow (Gph): 59
Resistance Empty (Ohms): 105
Resistance Full (Ohms): 4.5
Rheostat Range (Ohms): 105-4.5
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 45
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC

HYUNDAI 1102E400, 231102E400, 231102E401, 311102E300, 311102E301, 311102E400, 311103E300, 311102E350, 311102E351, 311102E450,

SPECTRA PREMIUM SP3019M
DELPHI FG1261
AIRTEX E8677M

HYUNDAI TUCSON 2005-2009
KIA SPORTAGE 2005-2010
