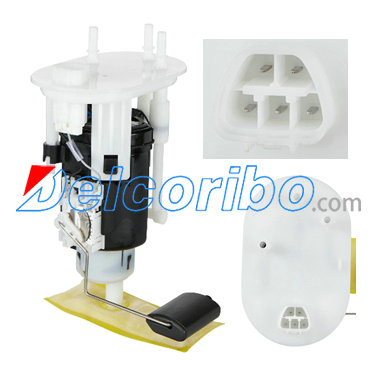

HYUNDAI 3111026510, 3111026750, 3111026755, 3111026755DS, 3111226350 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.5
Max Pressure Range (Psi): 100
Max Free Flow (Gph): 50
Resistance Empty (Ohms): 124
Resistance Full (Ohms): 3
Rheostat Range (Ohms): 124-3
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 40
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

HYUNDAI 3111026510, 3111026750, 3111026755, 3111026755DS, 3111226350,

SPECTRA PREMIUM SP3015M
DELPHI FG1258
DELPHI FG2103
AIRTEX E8729M
AIRTEX E8663M
CARTER P76405M
BECK/ARNLEY 1520998

HYUNDAI SANTA FE 2003-2006
