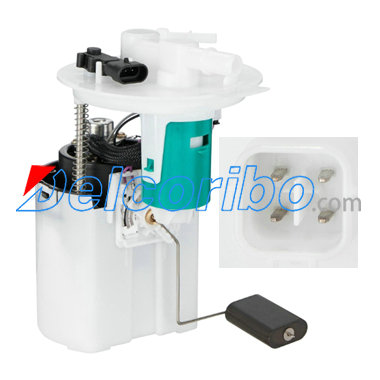

HYUNDAI 311103X500, 31110-3X500, 311103X520, 31110-3X520, 311111R000, 31111-1R000 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.3
Max Pressure Range (Psi): 49
Max Free Flow (Gph): 50
Resistance Empty (Ohms): 200
Resistance Full (Ohms): 8
Rheostat Range (Ohms): 200-8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 40
Min Pressure Range (Psi): 49
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

HYUNDAI 311103X500, 311103X520, 311111R000,

SPECTRA PREMIUM SP3034M
DELPHI FG0857
AIRTEX E9073M,
CARTER P76715M, P77081M

HYUNDAI ELANTRA 2011-2016
