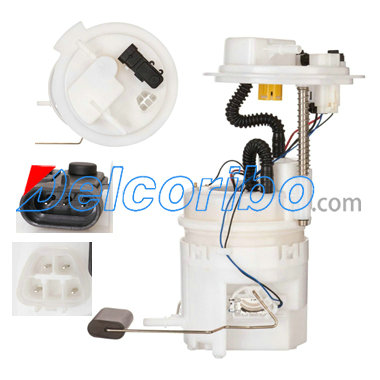

HYUNDAI 311101U000, 31110-1U000, 311101U300, 31110-1U300 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.22
Max Pressure Range (Psi): 53
Max Free Flow (Gph): 61
Resistance Empty (Ohms): 94
Resistance Full (Ohms): 6
Rheostat Range (Ohms): 94-6
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 52
Min Pressure Range (Psi): 47
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

HYUNDAI 311101U000, 311101U300, FG1284,

SPECTRA PREMIUM SP3042M, SP3079M
DELPHI FG1572
AIRTEX E9029M, E9098M
CARTER P76774M

HYUNDAI SANTA FE 2010-2012
KIA SORENTO 2011-2013
