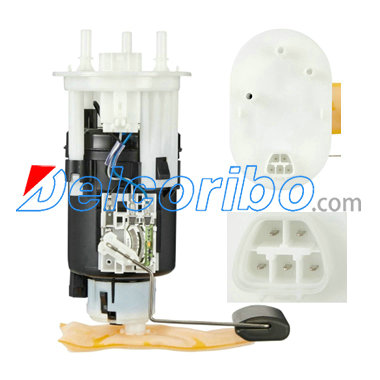

HYUNDAI 3111026500, 31110-26500, 3111026500DS, 31110-26500--DS Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 8.9
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 49
Resistance Empty (Ohms): 75
Resistance Full (Ohms): 2
Rheostat Range (Ohms): 75-2
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 40
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

HYUNDAI 3111026500, 3111026500DS,

SPECTRA PREMIUM SP3053M
DELPHI FG1930

HYUNDAI SANTA FE 2001-2003
