HYUNDAI 311103Q500, 31110-3Q500 Electric Fuel Pump Assembly

HYUNDAI 311103Q500, 31110-3Q500 Electric Fuel Pump Assembly

HYUNDAI 311103Q500, 31110-3Q500 Electric Fuel Pump Assembly

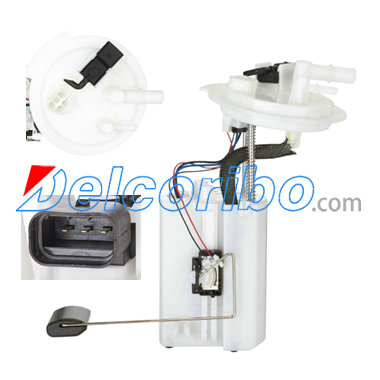

FPM1265 HYUNDAI Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.7
Max Pressure Range (Psi): 70
Max Free Flow (Gph): 59
Resistance Empty (Ohms): 200
Resistance Full (Ohms): 9
Rheostat Range (Ohms): 200-9
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 64
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
HYUNDAI 311103Q500,
SPECTRA PREMIUM SP3082M
DELPHI FG1285
AIRTEX E9036M
CARTER P77124
HYUNDAI SONATA 2011
