HYUNDAI 31110B8500, 31110-B8500 Electric Fuel Pump Assembly

HYUNDAI 31110B8500, 31110-B8500 Electric Fuel Pump Assembly

HYUNDAI 31110B8500, 31110-B8500 Electric Fuel Pump Assembly

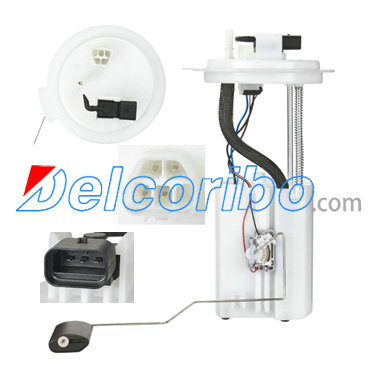

FPM1268 HYUNDAI Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 12.1
Max Pressure Range (Psi): 75
Max Free Flow (Gph): 60
Resistance Empty (Ohms): 200
Resistance Full (Ohms): 8
Rheostat Range (Ohms): 200-8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 70
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
HYUNDAI 31110B8500,
SPECTRA PREMIUM SP3088M
HYUNDAI SANTA FE 2013-2018
