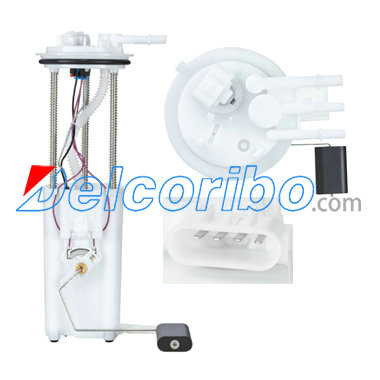

CHEVROLET 19177232, 19177234, 19332104, 19332106, 19367490, 25314352 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 14.2
Max Pressure Range (Psi) 130
Max Free Flow (Gph) 58
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48
Min Pressure Range (Psi) 72
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

GM 19177232, 19177234, 19332104, 19332106, 19367490, 25314352, 25314356, 25314777, 25318656, 25344825, P457M, 19177255, 25344847, 9535054,

SPECTRA PREMIUM SP457M, SP3371M
DENSO 9530018
DELPHI FG0100
DELPHI FG0098
AIRTEX E3573M
AIRTEX E3760M
AIRTEX E3966M

CHEVROLET CARGO VAN 1997-1999
CHEVROLET EXPRESS 1500 1997-2002
CHEVROLET EXPRESS 2500 1997-2002
CHEVROLET EXPRESS 3500 1997-2002
CHEVROLET G30 2001-2002
GMC SAVANA 1500 1997-2002
GMC SAVANA 2500 1997-2002
GMC SAVANA 3500 1997-2002
