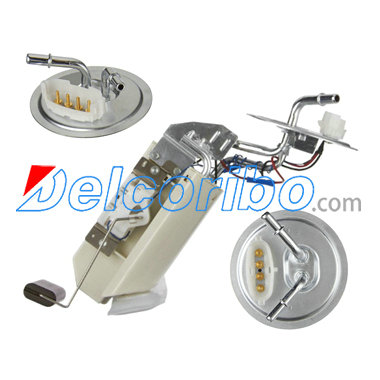

FORD F4TZ9A407R, F4TZ-9A407-R Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 10.8
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 26.4
Resistance Empty (Ohms): 20
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 20-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 21.1
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD F4TZ9A407R,

SPECTRA PREMIUM SP33A1H, FG33A
DORMAN 692142
DELPHI HP10275

FORD F-150 1990-1991
FORD F-250 1990-1991
FORD F-350 1990-1991
