GM 19152154, 25348566, 25369309, 28074108 Electric Fuel Pump Assembly

GM 19152154, 25348566, 25369309, 28074108 Electric Fuel Pump Assembly

GM 19152154, 25348566, 25369309, 28074108 Electric Fuel Pump Assembly

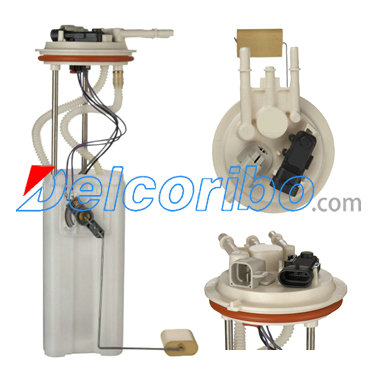

FPM1304 CHEVROLET Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.4
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
GM 19152154, 25348566, 25369309, P1561, 28074108,
SPECTRA PREMIUM SP3602M
DENSO 9535116
DELPHI FG0330
AIRTEX E3602M
ACDELCO MU1231
CHEVROLET EXPRESS 3500 2003
GMC SAVANA 2500 2003
GMC SAVANA 3500 2003
