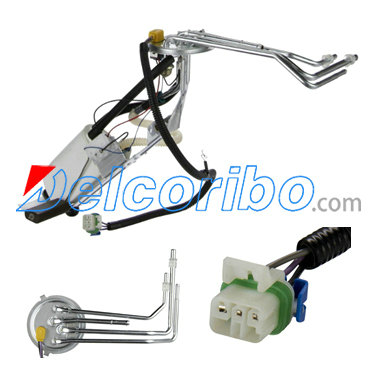

DELPHI HP0035, GM 19179527, 25164520 Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 12.3
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 55.7
Resistance Empty (Ohms): 0
Resistance Full (Ohms): 90
Rheostat Range (Ohms): 0-90
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 49.5
Min Pressure Range (Psi): 87
Strainer Included: Yes
Pin Count: 3
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Female
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

GM 19179527, 25164520,

SPECTRA PREMIUM SP3983H
DELPHI HP0035
ACDELCO MU1872

CHEVROLET CAMARO 1996-1997
PONTIAC FIREBIRD 1996-1997
