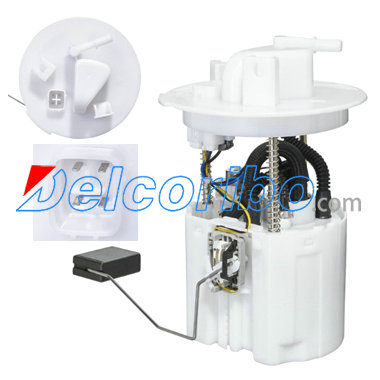

MAZDA L3901335Z, L3901335ZA, L3901335ZB, L3901335ZC, L3901335ZD Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10
Max Pressure Range (Psi): 61
Max Free Flow (Gph): 47
Resistance Empty (Ohms): 126
Resistance Full (Ohms): 15
Rheostat Range (Ohms): 126-15
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 38
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

MAZDA L3901335Z, L3901335ZA, L3901335ZB, L3901335ZC, L3901335ZD, L3901335ZE,

SPECTRA PREMIUM SP4006M
DELPHI FG1246
AIRTEX E8588M
CARTER P76311M

MAZDA 6 2003-2008
