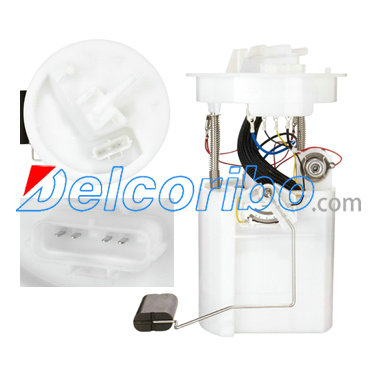

MAZDA LF3T1335X, LF3T1335XA, LF3T1335XB, LF3T1335XC, LF3T1335XD, 8N619H307LA Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.4
Max Pressure Range (Psi): 61
Max Free Flow (Gph): 59
Resistance Empty (Ohms): 400
Resistance Full (Ohms): 20
Rheostat Range (Ohms): 400-20
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

MAZDA LF3T1335X, LF3T1335XA, LF3T1335XB, LF3T1335XC, LF3T1335XD, 8N619H307LA, 8N61 9H307 LA,

SPECTRA PREMIUM SP4060M
DELPHI FG1286
AIRTEX E9049M
CARTER P76882M

MAZDA 3 2010-2013
