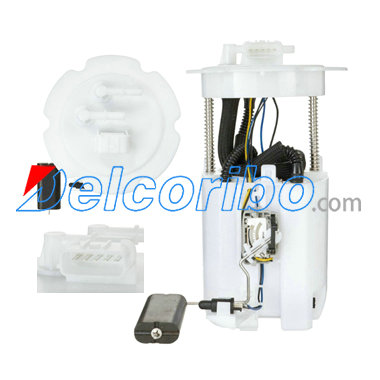

NISSAN 166182Y500, 166182Y501, 170408U001, 170442Y900, 170444M400, 170444M405, 170494M400 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.15
Max Pressure Range (Psi): 123.25
Max Free Flow (Gph): 63.8
Resistance Empty (Ohms): 82
Resistance Full (Ohms): 5
Rheostat Range (Ohms): 82-5
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 35.6
Min Pressure Range (Psi): 79.75
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

NISSAN 166182Y500, 166182Y501, 170408U001, 17040 8U001, 170442Y900, 170444M400, 170444M405, 170494M400, 175712Y500, 175712Y50A, 226702Y500, 250605M000,

SPECTRA PREMIUM SP4113M
DELPHI FG1237
AIRTEX E9184M

NISSAN SENTRA 2000-2002
