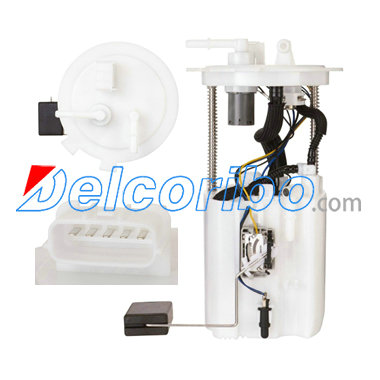

NISSAN 170401JA2A, 17040-1JA2A, 170401JA3A, 17040-1JA3A, 170401JA0A, 250601JA0A, 25060-1JA0A Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10
Max Pressure Range (Psi): 55
Max Free Flow (Gph): 55
Resistance Empty (Ohms): 283
Resistance Full (Ohms): 51
Rheostat Range (Ohms): 283-51
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 50
Min Pressure Range (Psi): 50
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

NISSAN 170401JA2A, 17040 1JA2A, 170401JA3A, 17040 1JA3A, 170401JA0A, 17040 1JA0A, 250601JA0A,

SPECTRA PREMIUM SP4115M
DELPHI FG1691

NISSAN QUEST 2011-2017
