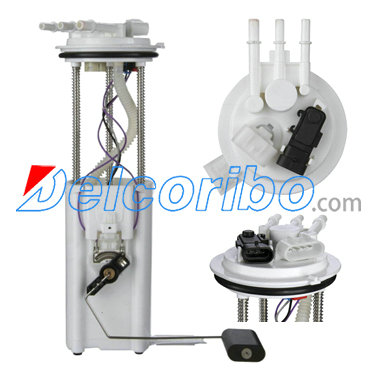

CHEVROLET 19177256, 19331273, 25178732, 25314775, 25320511, 25344816 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 13.2
Max Pressure Range (Psi) 116
Max Free Flow (Gph) 58.7
Resistance Empty (Ohms) 39
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 39-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 49.5
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

GM 19177256, 19331273, 25178732, 25314775, 25320511, 25344816, P414M, 9535000, 25168012,

SPECTRA PREMIUM SP414M
DENSO 9530024
BOSCH 67408
DELPHI FG0072
AIRTEX E3954M
CARTER P74761M
ACDELCO MU1755

CHEVROLET BLAZER 1997-2002
GMC JIMMY 1997-2002
