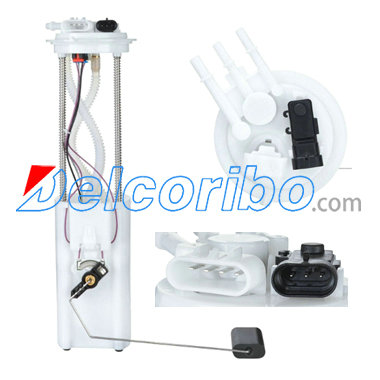

CHEVROLET 19177259, 25178729, 25175791, 8191772590, 19331270, 8251757910, 8251787290, 9535034 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 15.6
Max Pressure Range (Psi) 116
Max Free Flow (Gph) 58
Resistance Empty (Ohms) 39
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 39-250
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included Yes
Hardware Included Yes
Min Free Flow Rate (Gph) 48
Min Pressure Range (Psi) 72.5
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

GM 19177259, 25178729, P443M, P564M, 25175791, 8191772590, 19331270, 8251757910, 8251787290, 9535034,

SPECTRA PREMIUM SP443M
DENSO 9530010
BOSCH 67349
DELPHI FG0069
AIRTEX E3943M
BRUTE POWER 1010032
CARTER P74755M
ACDELCO MU1756

CHEVROLET LUV 1997-1999
CHEVROLET S10 PICKUP 1997-2000
GMC SONOMA 1997-2000
ISUZU HOMBRE 1997-2000
