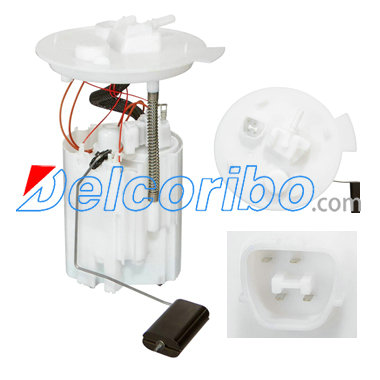

FORD FV6Z9H307A, FV6Z9H307D, FV6Z9H307E, FV6Z9H307F, FV6Z9H307L, FV6Z9A299B, FV6Z9A299D Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 9.8
Max Pressure Range (Psi): 65
Max Free Flow (Gph): 50
Resistance Empty (Ohms): 460
Resistance Full (Ohms): 50
Rheostat Range (Ohms): 460-50
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 40
Min Pressure Range (Psi): 45
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD FV6Z9H307A, FV6Z 9H307 A, FV6Z9H307D, FV6Z 9H307 D, FV6Z9H307E, FV6Z 9H307 E, FV6Z9H307F, FV6Z 9H307 F, FV6Z9H307L, FV6Z 9H307 L, FV6Z9A299B, FV6Z9A299D,

SPECTRA PREMIUM SP5131M
DELPHI FG1638
BOSCH 66104

FORD C-MAX 2013-2016
